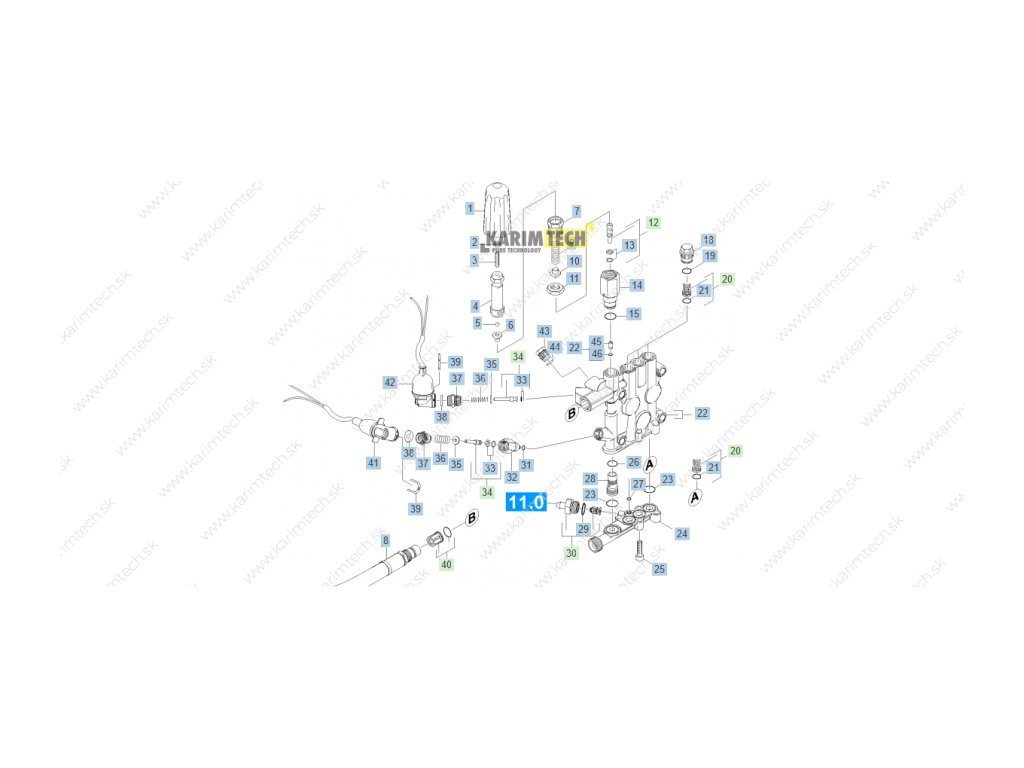

HDS 10/20-4 MX - stroj4

Podrobný popis

POS | Č. výrobku | Opis |

1 | 5.322-103.0 | Nastavovacie koliesko |

2 | 7.311-002.0 | 6-hr. matica M5 -6-A2E ISO 4032 |

3 | 7.307-017.0 | Skrutka s plochou hlavou M5x40 -St-45H-A |

4 | 5.304-070.0 | 6-hr.-Skrutka |

5 | 7.401-931.0 | Guľôčka 5 Kl3 -1.4401 DIN 5401 |

6 | 5.582-121.0 | Ventilový tanier |

7 | 5.404-082.0 | Dutá skrutka |

8 | 6.391-629.0 | VT hadica DN 13 |

9 | 5.332-444.0 | Vinutá pružina |

10 | 5.584-114.0 | Ventilový čap |

11 | 5.311-204.0 | 6-hr. matica M22x1,5 |

12 | 4.553-287.0 | Piest kompl. |

13 | 6.362-468.0 | O-krúžok kompl. 1ST.-R. |

14 | 5.402-746.0 | Hrdlo |

15 | 6.362-427.0 | O-krúžok 15,0x2,0 |

18 | 5.583-146.3 | Skrutka ventilu |

19 | 6.362-481.0 | O-krúžok 14,0 x 2,0 NBR 80 |

20 | 2.884-512.0 | Ventil (3 ks) |

21 | 6.363-003.0 | O-krúžok 13,0 X 2,0-NBR 90 |

22 | 4.550-886.3 | Hlava valca kompl. |

23 | 6.363-536.0 | O-krúžok 21x1,5 |

24 | 5.427-418.0 | Mosadzný ventil prívod vody |

25 | 7.306-043.0 | Valcová skr. M8x30 -8.8-A2E ISO 4762 |

26 | 6.362-381.0 | O-krúžok 13x2 - NBR 70 |

27 | 6.362-703.0 | O-krúžok 6,0x1,5-NBR 70 |

28 | 5.110-865.0 | Dutinka |

29 | 6.362-427.0 | O-krúžok 15,0x2,0 |

30 | 4.580-581.3 | Ventil kompl. |

31 | 6.362-853.0 | O-krúžok 4,47x1,78 |

32 | 5.402-705.3 | Spojovací kus |

33 | 6.363-037.0 | O-krúžok kompl. 1ST.-R. |

34 | 4.553-197.0 | Piest kompl. iba ako náhrada |

35 | 5.115-796.0 | Podložka |

36 | 5.332-268.0 | Vinutá pružina |

37 | 5.411-148.0 | Skrutkový uzáver |

38 | 5.367-030.0 | Membrána |

39 | 5.034-494.0 | Rameno |

40 | 4.580-594.0 | Ventil kompl. |

41 | 4.744-225.3 | Spínač kompl. |

42 | 4.744-224.0 | Spínač kompl. |

43 | 5.411-504.0 | Skrutkový uzáver |

44 | 6.362-176.0 | O-krúžok 6,07x1,78 |

45 | 5.581-239.0 | Sedlo ventilu |

46 | 6.362-386.0 | O-krúžok 5,0 x 1,5-NBR 80 |

100 | 2.885-034.0 | Súprava náhradných dielov Čerpadlo |
