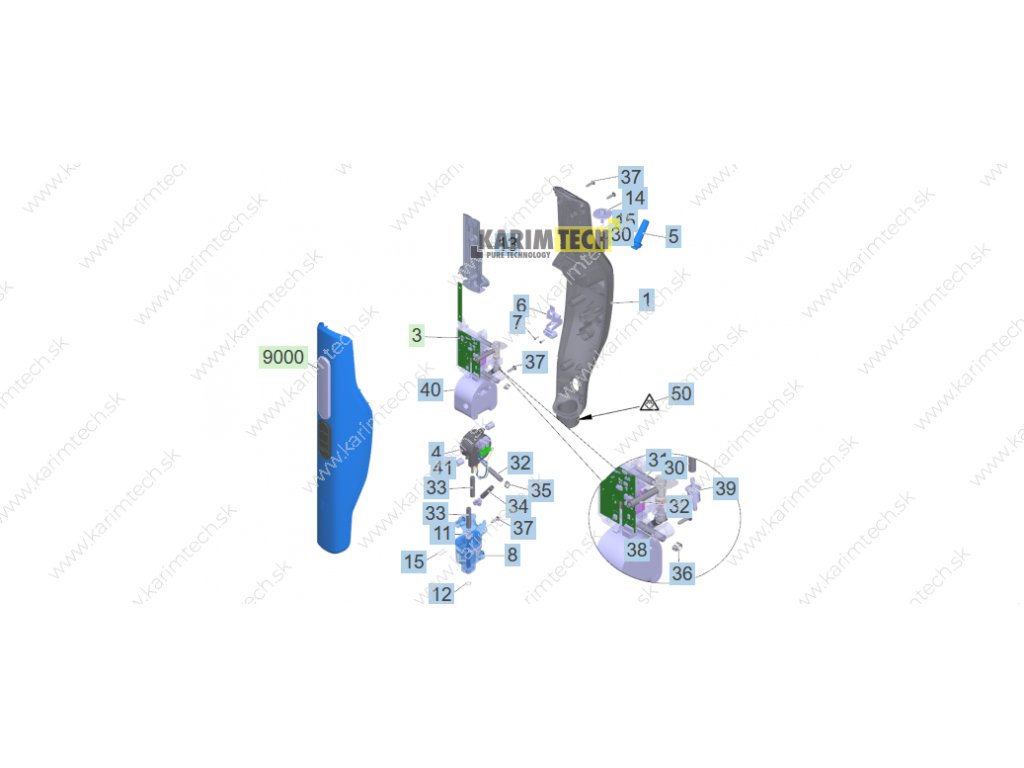

SC 3 Upright EasyFix - Basic unit complete

Podrobný popis

POS | Č. výrobku | Opis | Náhradné diely

1 | 5.512-300.3 | Housing rear |

4 | 4.585-043.3 | Steam generator complete SC Upright 220-240V |

5 | 4.512-146.0 | Power line complete EU 5m |

6 | 5.512-356.0 | Strain relief cable |

7 | 6.303-199.0 | Šošovk. skrutka 4,2x 16 |

8 | 4.512-130.3 | Adapter floor nozzle complete SC UP |

11 | 5.512-357.0 | Nipple steam nozzle |

12 | 6.362-922.0 | O-krúžok 8,73x1,78 |

13 | 5.512-303.0 | Retainer handle |

14 | 5.512-358.0 | Nipple tank |

15 | 5.585-066.0 | Svorka |

20 | 4.650-011.0 | Cable set complete SC UP *EU |

30 | 6.391-336.0 | Hadica |

30 | 6.391-336.0 | Hadica |

31 | 6.389-016.0 | Hose silicon DN4.5-Poly |

32 | 6.389-016.0 | Hose silicon DN4.5-Poly |

33 | 6.389-016.0 | Hose silicon DN4.5-Poly |

34 | 6.391-336.0 | Hadica |

35 | 6.389-993.0 | Hadicová objímka 7,5 - 9,0 |

36 | 6.389-882.0 | Hadicová objímka 8,5-10,0 |

37 | 7.303-108.0 | Skrutka 5x20 -10.9-R2R (In6Rd) |

38 | 6.391-336.0 | Hadica |

39 | 6.414-092.0 | Filter WK 21 |

40 | 5.512-385.0 | Insulating flow heater |

41 | 5.512-406.0 | Bearing DLE PA66 GF30 |

50 | 5.387-036.0 | Výstražná tabuľa |

9000 | 4.512-165.0 | Housing front part complete |
